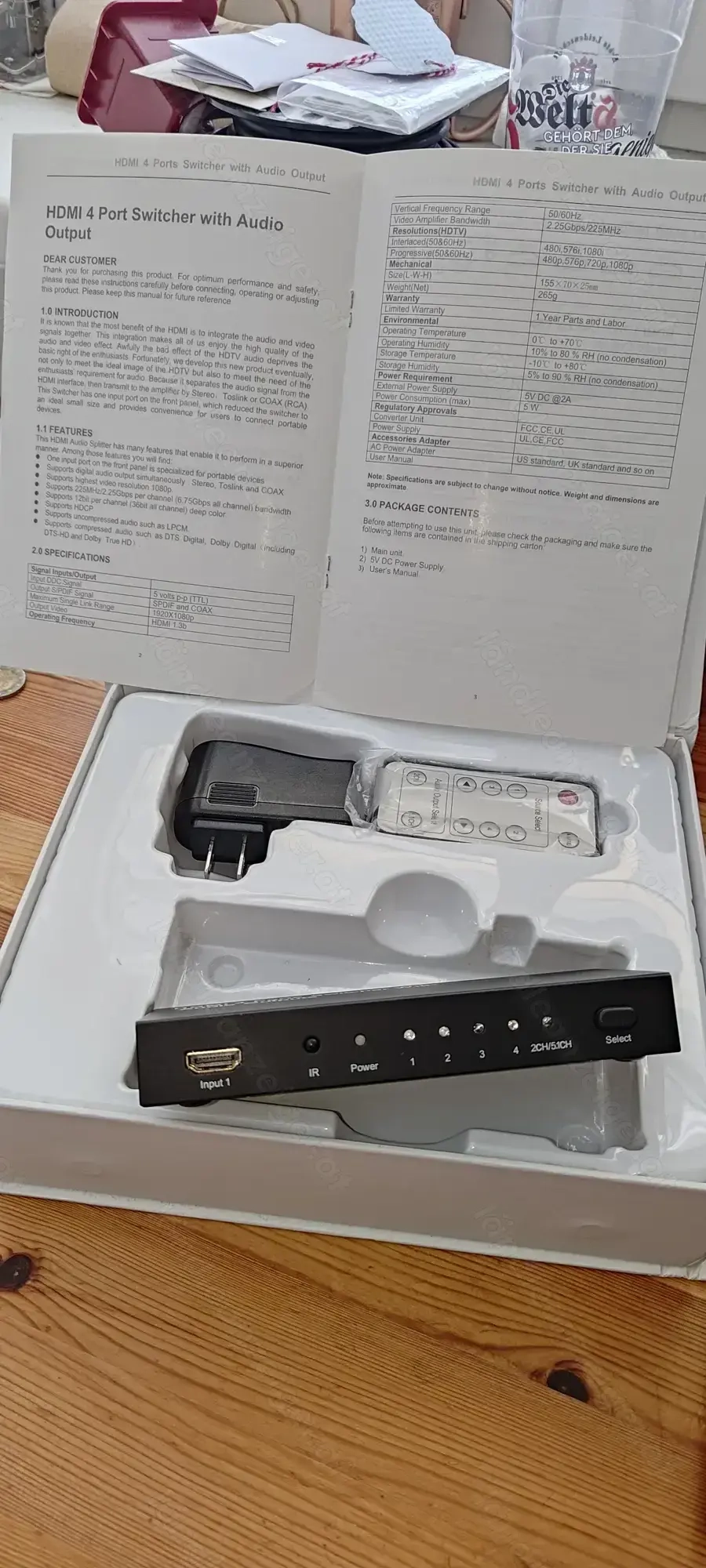

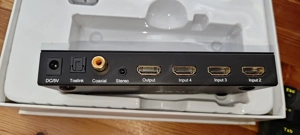

hdmi 4 port switcher

FEATURES:
One input port on the front panel is specialized for portable devices
Supports digital audio output simultaneously: Stereo, Toslink and COAX
Supports highest video resolution 1080p
Supports 225MHz 2.26Gbps per channel (6.75Gbps all channel) bandwidth
Supports 12bit per channel (36bit all channel) deep color
Supports HDCP
Supports uncompressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

SPECIFICATIONS:
Signals Inputs Outputs
Input DDC Signal 5Vpp (TTL)
Output S PDIF Signal SPDIF and COAX
Maximum Single Link Range 1920x1080p
Output Video HDMI 1.3b
Operating Frequency
Vertical Frequency Range 50 60Hz
Video Amplifier Bandwidth 2,25Gbps 225MHz
Resolutions (HDTV)
Interlaced (50&60Hz) 480i, 576i, 1080i
Progressive (50&60Hz) 480p, 576p, 720p, 1080p
Mechanical
L-W-H 155x70x25mm
Weight 265g
Power Requirement
External Power Supply 5Vdc @ 2A
Power Consumption (max) 5W
